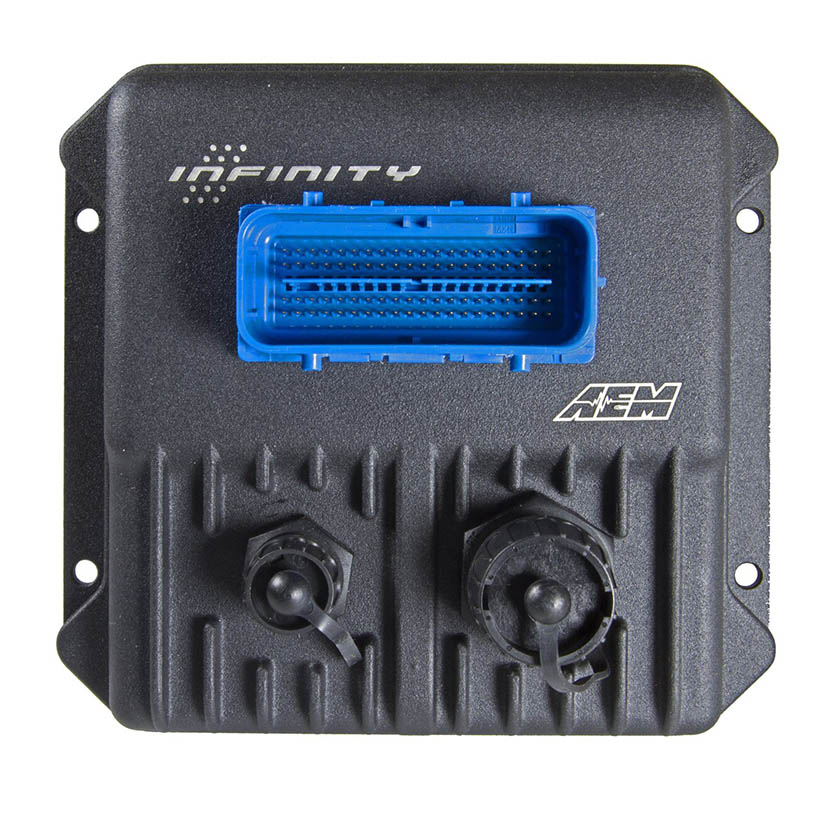

AEM Infinity 506 Stand-Alone Programmable Engine Management System
£1,998.03
AEM Infinity 506 Stand-Alone Programmable Engine Management System
THE SERIES 5 PLATFORM
The Infinity 506 and Infinity 508 ECUs are affordable state-of-the-art engine control units designed for four- and six-cylinder racing engines (typically Infinity 506), and racing engines with up to 8 cylinders that are using high-impedance injectors (Infinity 508). A Powersports version is available for Polaris RZR 900, 1000 and XP Turbo applications (PN 30-7112). The Series 5 features a smaller footprint than the Infinity Series 7 at 5.855†x 5.55†x 1.8â€, and has a single, weatherproof 80-pin connector.
Infinity 506
The Infinity 506 is designed for racing engines with up to 6 cylinders.
Infinity 508
The Infinity 508 is designed for high performance V8 crate engines and race engines using high impedance injectors with up to 8 cylinders. A special Powersports version is available for Polaris RZR 900, 1000 and XP Turbo applications using Plug & Play Adapter Wiring Harnesses specific to each application.
SELECTING THE RIGHT INFINITY ECU
Infinity ECU modules are designed for maximum flexibility across many types of applications. ECU modules and harnesses are sold separately for both Supported and Plug & Play applications. Choose the ideal Infinity ECU based on your application’s ignition and fuel injector output requirements using the Infinity Specifications Chart, and then choose between our available Plug & Play or Universal harnesses to create the Infinity solution that suits your specific needs.
SUPPORTED vs. PLUG & PLAY APPLICATIONS
The Infinity ECU delivers comparable tuning functionality regardless of application type. It is available for a wide variety of applications in two distinct forms:
Supported Applications
- Infinity Supported applications refer to an engine family or cam/crank pattern for which the Infinity ECU has been tested and validated to run. However, certain ancillary vehicle systems (such as factory instrument clusters, automatic transmissions, and certain drive by wire throttles), may not be supported.
- The setup Wizard included with the InfinityTuner user interface software dramatically simplifies initial tuning configuration to help ensure successful initial startup for Supported applications.
- Wiring is required for Supported applications. AEM offers Universal wiring harnesses in several iterations and detailed application-specific wiring instructions/schematics.
Plug & Play Applications
Infinity Plug & Play applications are available for select vehicles. Plug & Play applications support a vehicle’s engine and most other ancillary vehicle systems, and include application-specific start up calibrations. The Infinity Plug & Play harness (sold separately) connects directly into the vehicle’s factory ECU harness and requires no additional wiring.
200MHz Processor and Real Time Operating System
Late model vehicle ECU’s all run on faster processors. The Infinity ECU is built around a latest-generation 32 bit floating point 200MHz automotive processor and Real Time Operating System (RTOS), which is capable of processing 400 MIPS (millions of instructions per second). By comparison, common competitive systems typically use 20MHz to 50MHz processors. To our knowledge, the Infinity ECU currently has the fastest processing speed of any aftermarket Motorsports ECU available. This allows the Infinity to do more, faster, in a more stable programming environment.
- The Infinity’s 200MHz processor and RTOS makes the Infinity more responsive, for a better driving experience
- The Infinity’s 200MHz processor and RTOS allows for more accurate ignition timing, which enables an engine to create more power
- The Infinity’s faster proc...
